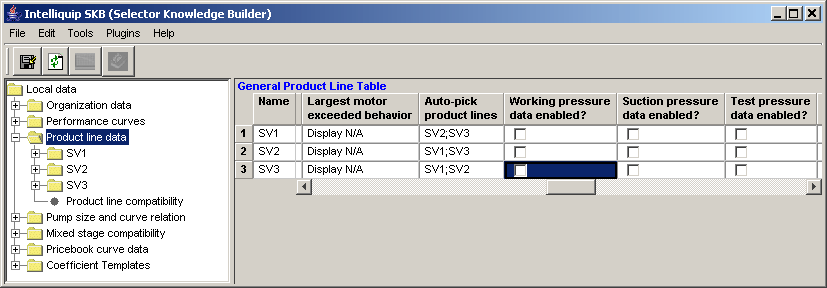

This image shows an organization with three similar product lines (all single stage end suction). To ensure the user is offered the best possible selection for a given conditions of service, it is desired to have all three product lines searched whenever at least one is selected by the user. To implement this the SKB's Auto Pick Product Lines fields are used and populated as shown below.

As shown above in the Auto-pick product lines field, the SV2 and SV3 product line will automatically be selected if the SV1 product line is selected. The SV1 and SV3 will be selected if the SV2 product line is selected, and the SV1 and SV2 for the SV3 product line.

Note: Supplier ID's are used to populate the fields and semicolons are used to separate multiple product lines.
