The radial load limit table is used to define specific radial load limits which are dependent on rules specified in the table. The limit defined here will be used in the Selector to determine if the calculated rated radial load is within the limit. If the rated radial load > radial load limit a “Near Miss” will be generated. The table offers flexibility in choosing rule options which determine the limits.
In the navigational tree, open the engineering data folder for the product line to edit.
Click on radial load limit (overhung pumps) [N] in the navigational window.
The data manager window will display the radial load limits table.
Enter a row rule
Enter column rule or rules.
Insert the numbers of columns needed to populate your data. Click here to see an example.
Suction Pressure Table with two columns inserted
Select or manually enter the rule criteria for the columns.
Enter data in the appropriate column-row cell relationship. See the below example.
Important
:
Remember to assign the correct units of measure before entering data.

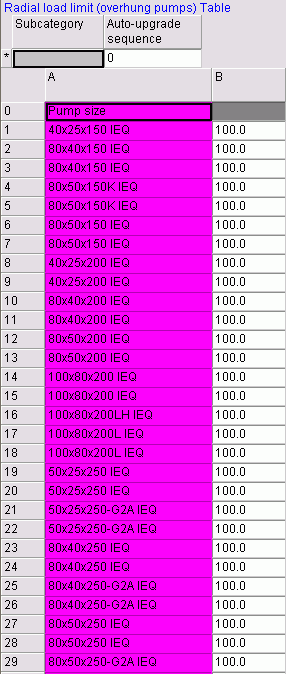

Example 1 - table with pump size as the rule criteria.
Click
to save changes.
